Layout


Layout

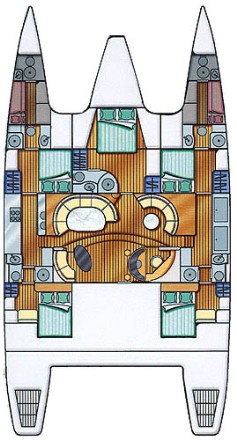

With a length of almost 20 meters for over 10 wide, Sagittarius offers of indoor and outdoor living spaces that few sailing boats can boast.
Guests are entitled to four large cabins, all with double bed, desk and bathroom with separate shower, as well as, as appropriate, a further cabin in the central nacelle, even larger.
The crew normally consists of Commander, Sailor and hostess (and possibly cook or diving instructor, according to the request of guests), are reserved for the two twin cabins bow, which are completely independent, even at the level of inputs, the guest cabins.



Dati tecnici

Builder: Marine Jeantot
Complete refit in 2012
Length 19.80 meters, excluding bowsprit
Width 10.50 meters
Draft 1.80 meters
Tree height 27.2 meters
2 x 140 HP Yanmar engines with propellers Max-Prop
Approval unlimited surfing

Vele

Full batten mainsail square top in spectra / kevlar 125 m
Lazy bag and lazy jacks
Mainsheet hydraulically adjustable type Magic Trim
Genoa in spectra / kevlar 92 m of hydraulic furling profurl
Staysail furling Dacron 43 m of electric profurl
220 sqm gennaker with sock intermediate
220 sqm gennaker heavy
280 sq m Spinnaker with sock
Code Zero 200 sqm on rollafiocco manual

Varie

5.40 meters Zodiac dinghy with outboard Honda 45 HP
Wake board + Kneebosrd
2 SUP (Stand up paddle) 14'

2 Bauer compressors cylinders with 8 cylinders
2 rafts Ocean 8 pax each.
Safety equipment complete
Complete equipment for deep sea fishing (6 tubes)
Outdoor seating with cushions
external solarium with mattresses for 7 pax

Elettronica

2 Chartplotter Simrad NSS 12 "touchscreen
2 Multifunction Display Color B & G
2 Simrad VHF with DSC
2 Simrad AP28 Auto Pilot
B & G Broadband Radar 4G
Class-B AIS and radar with chart overlay on the chartplotter
Autopilot Robertson of respect
VHS Raymarine respect
Radio HF (SSB) Furuno
Iridium Pilot (3 telephone lines, data line + 128 kb / s)
Personal computer with SW navigation


Elettrodomestici

Induction cooking top 70 cm
Integrated double sink with garbage disposal
Two freezers full size 260 liters each.
Built-in refrigerator 265 lt.
Ice machine
minibar
Microwave oven
Oven cooking + standard steam
Dishwasher 13 place settings
Scrubbers 8 kg
3D TV Samsung 32 "
Harmann Kardon Hi-Fi


Elettricità e impianti

2 Kohler 18kW each.
2 battery packs 24V 840A Total (services)
2 battery packs 12V 180A each (motors)
5,000 watt inverter
1.6 kw photovoltaic system
2 chargers 100A (220V + 110V)
2 Idromar watermaker 180 l / h
2 boiler of 100 liters / each
2 freshwater tanks 1,100 liters each.
Lighting indoor, outdoor and underwater LED
